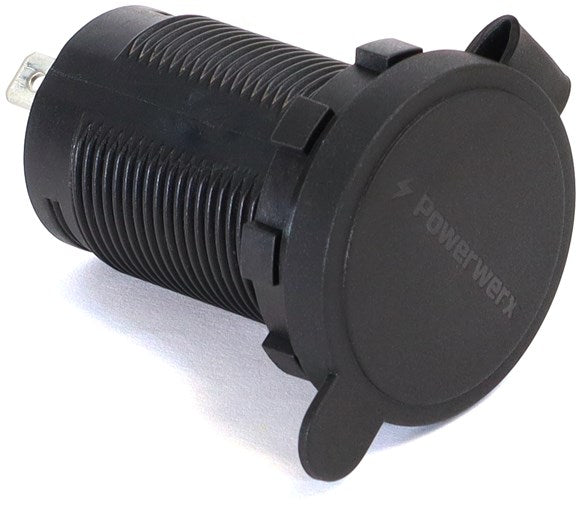

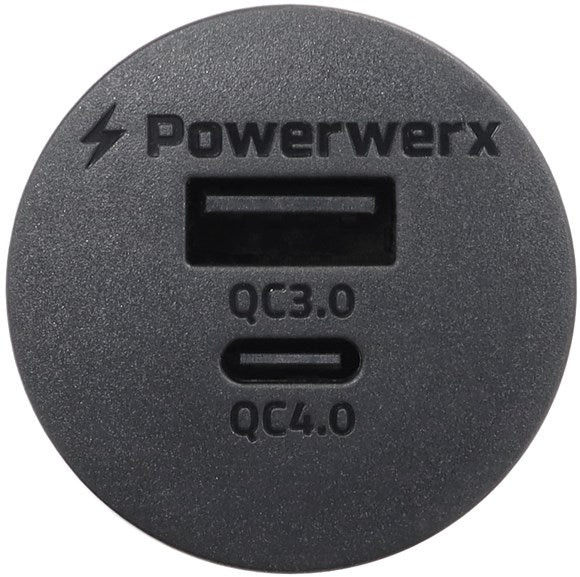

Panel Mount Combination USB QC3.0 and USB Type CQC4.0 Fast Device Charger
Panel Mount Combination USB QC3.0 and USB Type CQC4.0 Fast Device Charger
Regular price
$41.22 USD
Regular price
Sale price
$41.22 USD
Unit price
/
per
Couldn't load pickup availability
Tech Specs
| Operating Voltage | 9-32 V |
| QC3.0 Output | 5-12V DC (18W Max) |
| QC4.0 Output (With Input of 9.0 to 11.9V DC) | Up to 27W |
| QC4.0 Output (With Input of 12.0 to 14.9V DC) | Up to 36W |
| QC4.0 Output (With Input of 15.0 to 19.9V DC) | Up to 48W |
| QC4.0 Output (With Input of 20.0 to 32.0V DC) | Up to 60W |
| Terminals | 1/4" Nickel Plated Blades |
| Panel Mount Length | 2.5 in |
| Mounting | Fits 1-1/8" hole size |
| Operating Temperature Range | -4 to +176 °F (-20 to +80 °C) |
| Over Voltage Protection | Yes |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Includes | Protective dust cap cover and rear mounting/locking nut |
| Recommend Installation | Use IFH-18-02 inline blade fuse holder with 7.5A fuse on 12/24V input |
